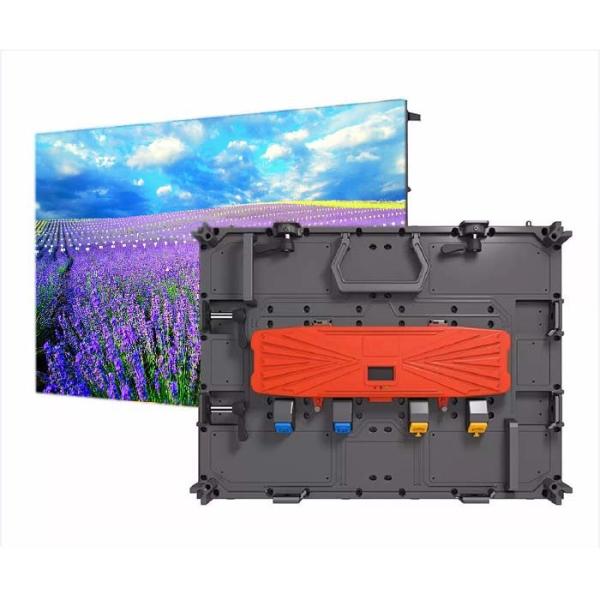

256*128 Indoor Advertising Multi Color LED Display Narrow Pixel
Pitch 2mm
Model | HRSIM-P0.93 | HRSIM-P1.25 | HRSIM-P1.66 | HRSIM-P2 |
| Pixel pitch | 0.9375MM | 1.25MM | 1.667MM | 2MM |
| Encapsulation | Mini0.9 | SMD1010 | SMD1010 | SMD1515 |
| Module size | 150*168.75mm | 200*150 | 200*150 | 256*128 |
| Pixel density | 1,137,777dots/㎡ | 640,000dots/㎡ | 360,000dots/㎡ | 250,000dots/㎡ |
| Pixel configuration | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Pixel resolution | 160*180 | 160*120 | 120*90 | 128*64 |
| Average power | 25W | 25W | 25W | 20W |
| Weight | 0.2KG | 0.2KG | 0.19KG | 0.5KG |
| Drive type | Constant current drive | Constant current drive | Constant current drive | Constant current drive |
| Scan mode | 1/30S | 1/30S | 1/30S | 1/32S |
| Refresh frequency | 3840HZ/S | 3840HZ/S | ≥3840HZ/S | 1920HZ/S |
| Brightness (cd/m²) | 600cd/㎡ | 600-800cd/㎡ | 600-800cd/㎡ | 1000cd/㎡ |
| Life-span | 50,000Hours | 100,000Hours | 100,000Hours | 100,000Hours |
| Viewing angle | 140°/120° | 140°/120° | Horiaontal>170° Vertical>120° | Horiaontal>170° Vertical>120° |
| Input voltage | AC220V-AC250V | AC220V-AC250V | 220VAC/50HZ±10% | 220VAC/50HZ±10% |
1. Over 10 years of experience.
2. Huarong provide OEM/ODM services.
3. MOQ: 1pc, sample order are welcome for your evaluation
4. Abundant inventory.
5. Huarong trade assurance limit: US $423000, Still rising.
6. 1 year warranty.
7. Free design products.
8. Super high cost performance.
9. Professional quality inspection team.
Shenzhen Huarong Electronic Technology CO., LTD.is a large-screen
manufacturer integrating R & D, production, and sales. It
specializes in DID LCD splicing screens, DLP rear-projection large
screens, small-pitch LED displays, LCD monitors, and touch
all-in-one machines. High-end display products are in a leading
position in the large-screen display industry. At the same time,
the HUARONG brand large screens produced have been recognized by
the industry and praised by customers for their good quality. After
years of rapid development, it now has self-built standard
factories. Equipped with a variety of general and special
production equipment, high-speed automated production lines, and
Japan's imported testing and analysis instruments, while employing
high-quality management personnel and R & D technicians in the
industry.
The company cooperates with domestic and foreign merchants with
rigorous work attitude, high-quality products and integrity, and a
win-win business purpose. The company has always been adhering to
the development concepts of "talent is the foundation of the
enterprise" and "building a first-class enterprise, creating a
first-class brand", and always keeps "quality is life". Based on
market management ideas, we strive to make the
1: What is the warranty of your led display?
A: We offer 12 months warranty. and more than 100000 hours screen
life span
2: what is your payment term? How long it takes to delivery?
A: We usually accept the T/T or L/C. both of them will at least 30%
deposit in advance, and the rest of 70% will paid before
delivery. The lead time is usually 20 day
3: How can you ensure the led display product quality?
A: Before shipment , all the screens have aging test. and then we
also have waterproof test and shake test, ensure products can
transportation safety and normal use.
4: What is your pre-sale and post-sale service?
A: For pre-sale service, we have professional sales team and
technical team, who are willing to answer your question within 24
hours.
For post-sale service, we will instruct you how to installation
,how to use, how to change the broken modules , and we can also
send the technical to your country, in general, our led display
will not have a big problem, you can rest assured to buy.
