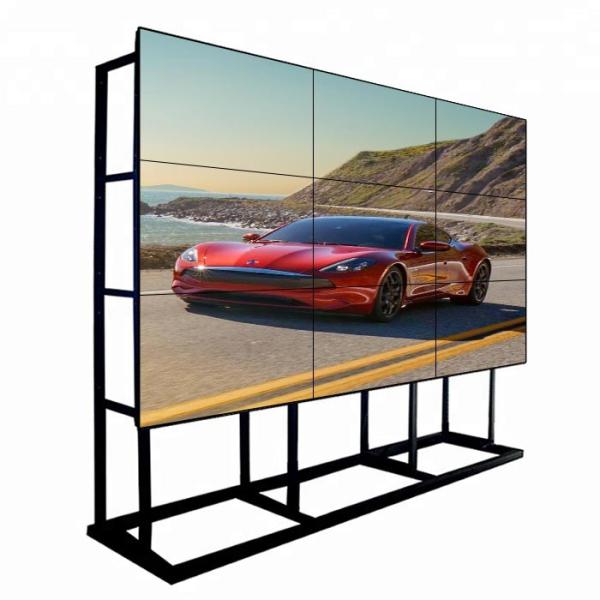

HR46FB TFT 46 Inch 3x3 LCD Display Wall Ultra Narrow 1.7mm Bezel

2x2 46inch Ultra Narrow 1.7mm Bezel LCD Video Wall HR46FB 3x3 Video Wall

• Computer signal input VGA x1
• Digital input DVIx1, HDMIX1, 1080P(1920x1080)Backward Compatible
• HD input YPbPrX1, 1080P(1920X1080)Backward Compatible
• Video Output CVBS(BNC)x2
• Screen Splicing Module Built-in, D-Sub15in X1, D-Sub15Out X1
• Engineering Software Customized
• Operation Method Wire control, remote control
• Video Format PAL,NTSC
• Wide Voltage Design 100~240V AC
• Mounting Holes 600mm x 400mm(W x H)
• Installation Method Hanger (optional),Bracket (optional),Cabinet (optional)

Features
1, Narrow gap between screens
2, Use special industrial Panel-Sammeng DID Panel-Long lifetime, high reliability
3, No need a separate controller to splice the screens, splice any screens to display one picture or video by a software system
4, Support multi-zone screen,the screen can be divided into many display areas which can play different content respectively;
5. Support video, audio, images and text playing function,Compatible file format:Avi,mpg/MPEG,vob,dat,mpeg1,mpeg2 or divx,mp3,24 bites BMP,jpeg, general text file;
6, support textphoto rolling display;
7, support Annual Calendar;
8, Support file name revision, move, delete, set up index function;
9, Support background music function;
10, support advertising content insert function at a set time;

Newest 46inch series narrow bezel LCD video wall customed 3x3 4X4

46inch series	HR46CB	HR46E	HR46EB	HR46F	HR46FB
Screen Ratio	16:09
High Brightness	550cd/m2	700cd/m2	550cd/m2	700cd/m2	550cd/m2
Screen Splicing Module	Built-in, D-Sub15in X1, D-Sub15Out X1
Bezel gap	5.5MM	3.5mm		1.7mm
Shell Material	Metal shell, anti-static, anti-magnetic field, anti-strong electric field interference
Power Consumption	200W	180W	165W	160W	150W
Contrast	3000:01:00	4000:01:00
Dimensions	1023.98mmX578.57mm	1021.98mmX576.57mm		1020.02mmX574.61mm
Single bezel Size	3.7mm,1.8mm	2.3mm,1.2mm		1.15mm,0.55mm
Panel Type	46"DID LCD Panel(Diagonal:1168mm)
Physical Resolution	1920x1080
Pixel Pitch	0.53mmX0.53mm
Display Color	8Bits, 16.7M
Response Time	< 8MS
Life(hrs)	>60,000(hrs)
Viewing Angle	178°(H)/178°(V)
Wide Voltage Design	100~240V AC
Refresh Rate	60HZ
Video Output	CVBS(BNC)x2
Video input	CVBS(BNC) x 2, S-VIDEO(Y/C)x1
Computer signal input	VGA x1
Digital input	DVIx1, HDMIX1, 1080P(1920x1080)Backward Compatible
HD input	YPbPrX1, 1080P(1920X1080)Backward Compatible
Video Format	PAL,NTSC
Storage Temperature	-20°C~60°C
Engineering Software	Customized
Operation Method	Wire control, remote control
Installation Method	Hanger (optional),Bracket (optional),Cabinet (optional)
Weight (including packaging)	14.6KG	13.5KG
Mounting Holes	600mm x 400mm(W x H)
Operating Temperature	0°C~60°C
Working Humidity	10%~90%

Why Choose Us

1. Over 10 years of experience.

2. Huarong provides OEM/ODM services.

3. MOQ: 1pc, sample order are welcome for your evaluation

4. Abundant inventory.

5. Huarong trade assurance limit: the US $423000, Still rising.

6. 1-year warranty.

7. Free design products.

8. Super high-cost performance.

9. Professional quality inspection team.
