| Brand Name : | HUARONG |
| Price : | Negotiation |
8 Bits 16.7m 46" 3x3 LCD Video Wall 1920x1080 Physical Resolution
1920x1080 46" 3x3 Lcd Video Wall 14.6KG /13.5KG DID 3x3 Tv Wall
| 46inch series | HR46CB | HR46E | HR46EB | HR46F | HR46FB |
| Panel Type | 46"DID LCD Panel(Diagonal:1168mm) | ||||
| Physical Resolution | 1920x1080 | ||||
| Pixel Pitch | 0.53mmX0.53mm | ||||
| Screen Ratio | 16:9 | ||||
| Response Time | < 8MS | ||||
| High Brightness | 550cd/m2 | 700cd/m2 | 550cd/m2 | 700cd/m2 | 550cd/m2 |
| Bezel gap | 5.5MM | 3.5mm | 1.7mm | ||
| Power Consumption | 200W | 180W | 165W | 160W | 150W |
| Dimensions | 1023.98mmX578.57mm | 1021.98mmX576.57mm | 1020.02mmX574.61mm | ||
| Single bezel Size | 3.7mm,1.8mm | 2.3mm,1.2mm | 1.15mm,0.55mm | ||
| Contrast | 3000:1 | 4000:1 | |||
| Viewing Angle | 178°(H)/178°(V) | ||||
| Display Color | 8Bits, 16.7M | ||||
| Refresh Rate | 60HZ | ||||
| Life(hrs) | >60,000(hrs) | ||||
| Video input | CVBS(BNC) x 2, S-VIDEO(Y/C)x1 | ||||
| Computer signal input | VGA x1 | ||||
| Digital input | DVIx1, HDMIX1, 1080P(1920x1080)Backward Compatible | ||||
| HD input | YPbPrX1, 1080P(1920X1080)Backward Compatible | ||||
| Video Output | CVBS(BNC)x2 | ||||
| Screen Splicing Module | Built-in, D-Sub15in X1, D-Sub15Out X1 | ||||
| Engineering Software | Customized | ||||
| Operation Method | Wire control, remote control | ||||
| Video Format | PAL,NTSC | ||||
| Wide Voltage Design | 100~240V AC | ||||
| Mounting Holes | 600mm x 400mm(W x H) | ||||

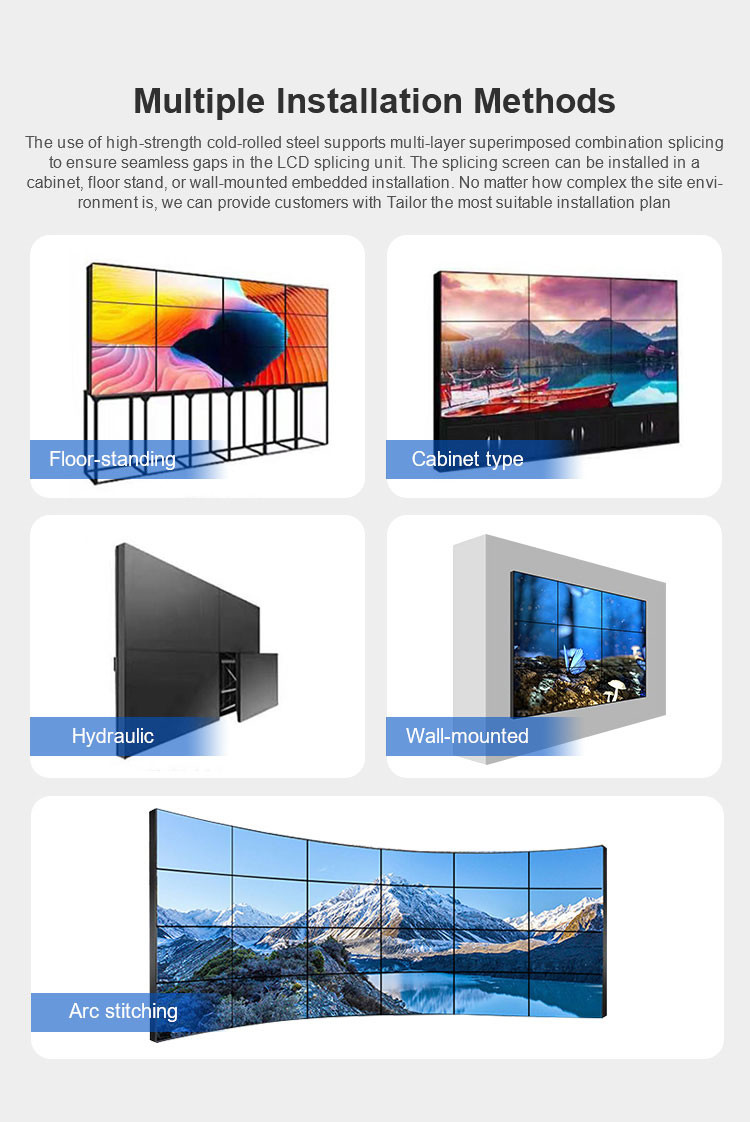

| Installation Method | Hanger (optional),Bracket (optional),Cabinet (optional) | ||||
| Weight (including packaging) | 14.6KG | 13.5KG | |||
| Storage Temperature | -20°C~60°C | ||||
| Operating Temperature | 0°C~60°C | ||||
| Working Humidity | 10%~90% | ||||
| Shell Material | Metal shell, anti-static, anti-magnetic field, anti-strong electric field interference | ||||
LCD video wall is a large visualization surface that is built from
multiple LCD displays (also known as 'tiles'). These individual
displays are designed specifically for use in these applications
It is made up of multiple panels which are made up of smaller
modules which then have multiple multi-color LCD on them
|
|
